Ingenico

连接支付终端可为客户提供流畅的支付流程，并方便收银员的工作。

重要

• Ingenico 支付终端需要IoT 系统。

• Ingenico目前仅在比利时、荷兰和卢森堡可用。

• Odoo works with Ingenico’s Lane/5000, Desk/5000, Move/5000 payment terminals, as they support the TLV communication protocol through TCP/IP.

Ingenico terminal configuration

To configure the Lane/5000, Desk/5000, or Move/5000, follow these steps:

1. Press the function button (F on the Lane/5000 terminal, ⦿ on the Desk/5000 and Move/5000 terminals).

2. Go to Kassa Menu ‣ Settings Menu, enter the settings password (default: 2009), and press OK.

3. Select Protocol and press OK.

4. Select CTEP and press OK.

5. Select Change Connection and press OK.

6. Select TCP/IP and press OK. Then, select IP-address and press OK.

7. Enter the IoT system’s IP address and press OK.

8. Enter port number 9001 if using an IoT box or 9050 if using the Windows virtual IoT.

9. Select No SSL and press OK.

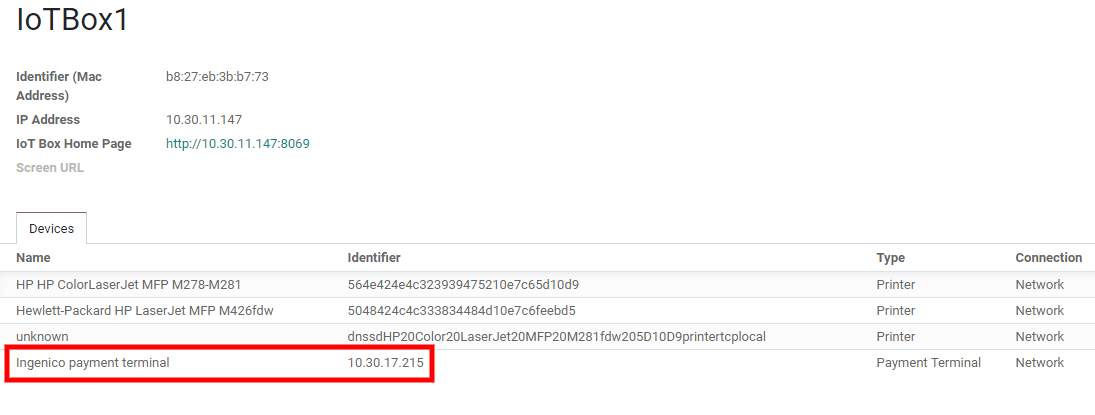

The terminal restarts and should be displayed on the IoT system’s form in Odoo.

Odoo 配置

The configuration of an Ingenico terminal with Odoo requires to first connect the IoT system to Odoo, then to enable the Worldline terminal in the POS settings under the Payment Terminals section.

To connect the Ingenico terminal with Odoo Point of Sale, follow these steps:

1. 转到 销售点 ‣ 配置 ‣ 支付方式，然后 创建付款方式。

2. 将 日记账 字段设置为 银行。

3. Set the Point of Sale field to the desired point of sale.

4. 将 整合 字段设置为 终端机。

5. Select the Worldline terminal number in the Payment Terminal Device field, then save.
